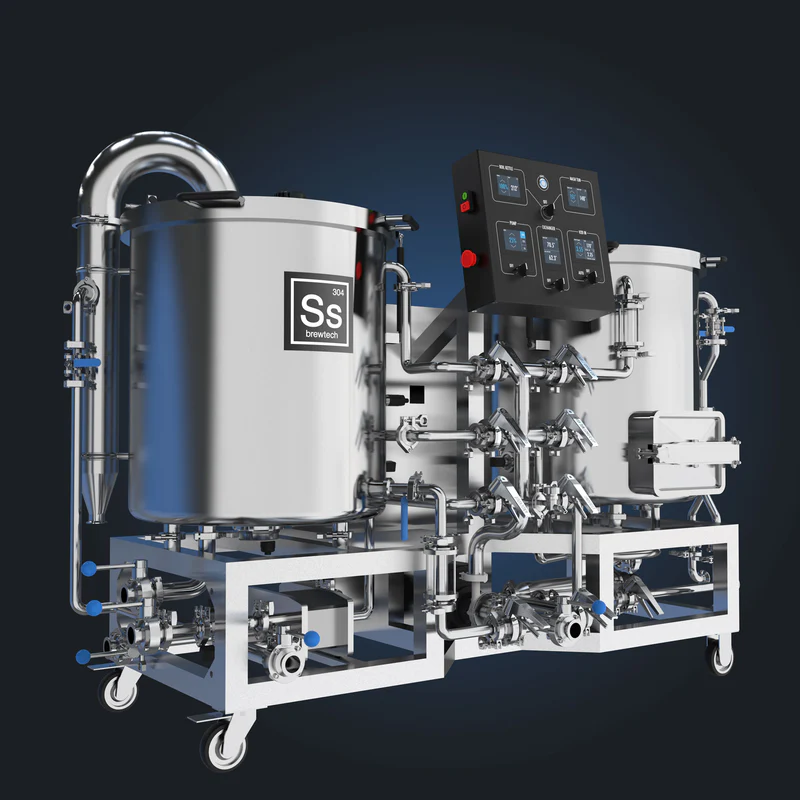

Ss Electric Brewhouse 1 BBL

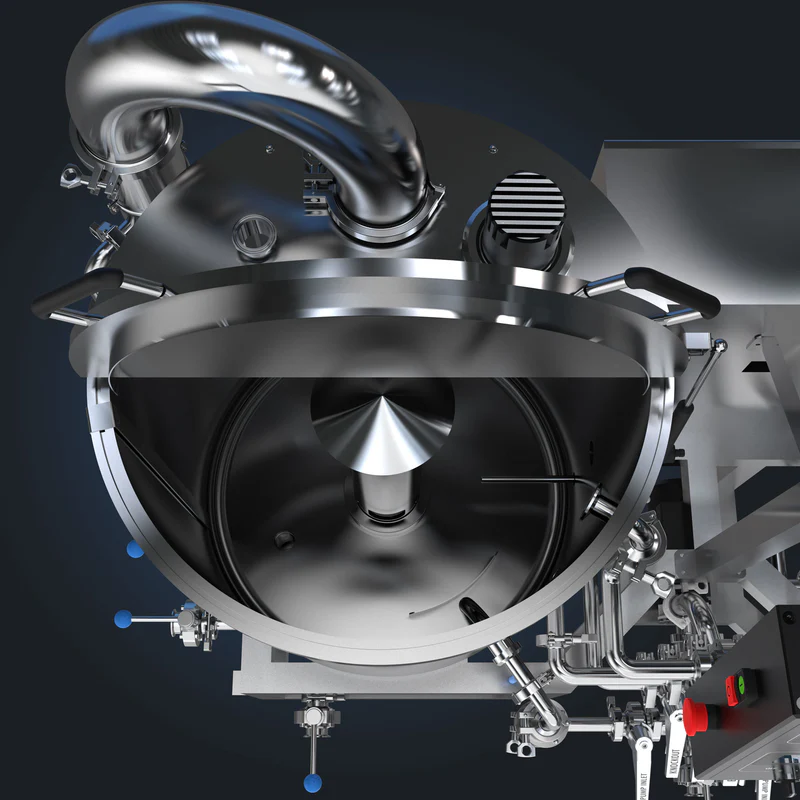

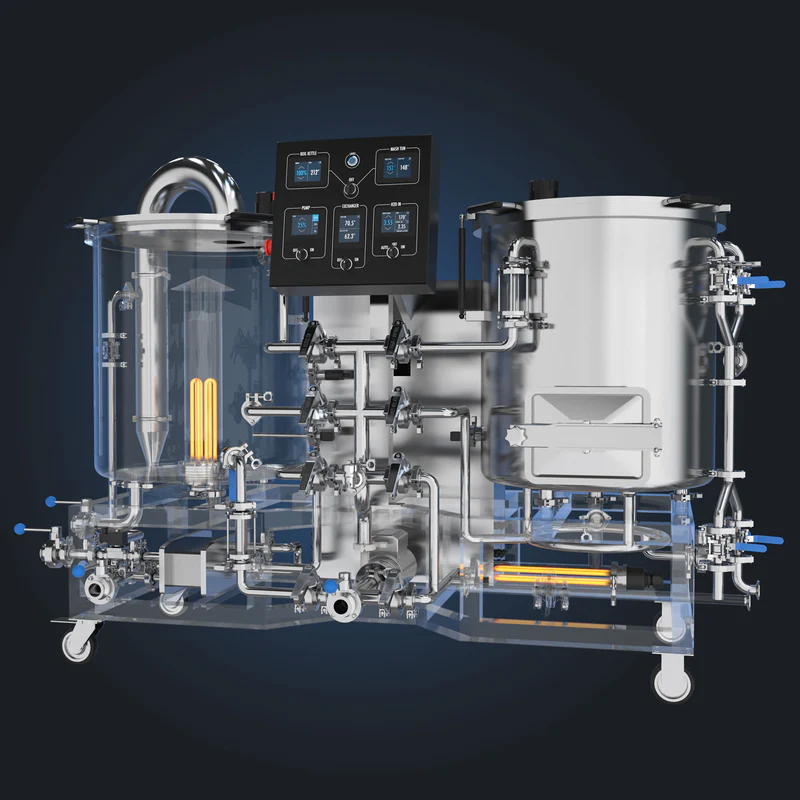

PATENT PENDING INTERNAL CALANDRIA 2.0

External calandrias are widely used in large scale (50 bbl+) professional brewhouses, and for good reason, as a calandria vastly improves the efficiency of a brewhouse by requiring less energy to achieve an effective boil.  Our Patent Pending internal calandria takes the essential elements of an external calandria and places them directly in the kettle.  The natural convection of the liquid removes the need for the additional complication of a calandria pump.  Version 2.0 of our popular internal calandria incorporates sealed magnets into the base of the shell to allow for easy removal and cleaning.

TOUCH CONTROLS & PRO VALVE TREE

A fundamental design element for all of our Pro Brewhouses has always been brewer-centric control.  Having all the process-significant valves on a centralized tree allows for quick and accurate adjustments during your brew day. The Ss Electric Brewhouse incorporates our reimagined user interface. The new control panel design incorporates touch controllers and the ability to automate some key functions. The result is a brewhouse with a much higher degree of precision than ever before.

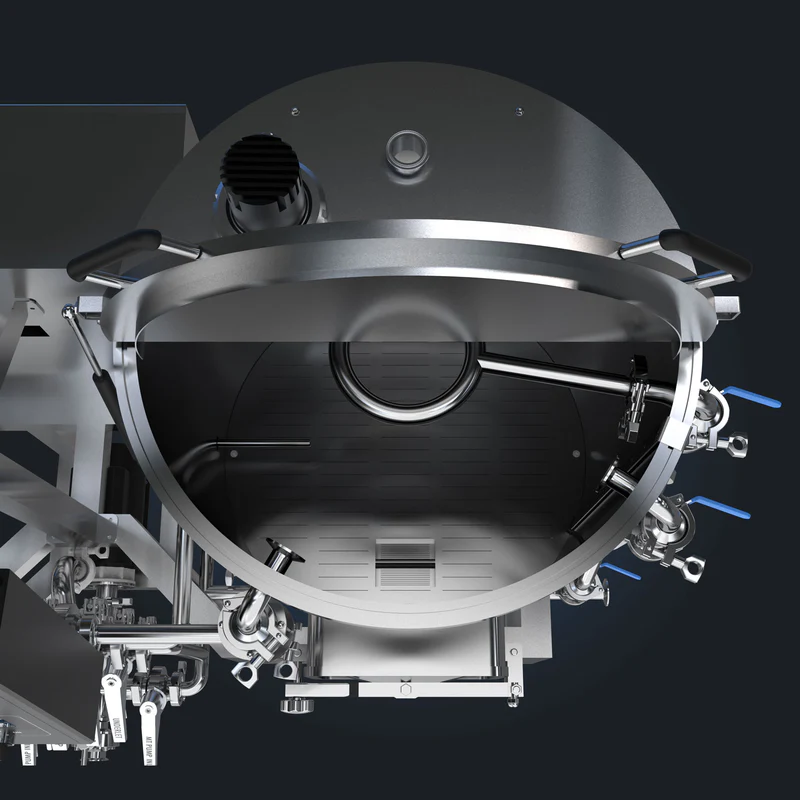

MILLED FALSE BOTTOM AND GRAINOUT DOOR

Milling slots into a solid plate of stainless steel is widely considered the most precise way to manufacture a false bottom. For the Ss Electric Brewhouse, we didn’t just stop at a milled false bottom, we also added a professional flush-mount grain-out door for easy removal of spent grain. Nestled beneath the false bottom is an array of 5 wort outlet ports contributing to a balanced runoff. A Recirculation Infusion Mash System (RIMS) is used for more exacting temperature control resulting in clearer wort and increased extraction.

N02 SPRING ASSISTED LIDS & ACCESSORIES

The gas spring assisted lids make getting a paddle into the mash tun easy, while also maintaining the ability to close the lids for better thermal efficiency and storage. The back half of the lids incorporate lights and accessory ports for future upgrades.

• 1 bbl Brewhouse Dimensions: 36" W x 78" L x 52" H
• 1 bbl Brewhouse features 11,500w Boil Kettle element, 4000w external RIMS element
• 240v Single Phase - 60 amp Dedicated Circuit - Typically found in residential and light commercial buildings.
• 2B Mill Finish
• Butterfly valves, sight glasses, and TC gaskets
